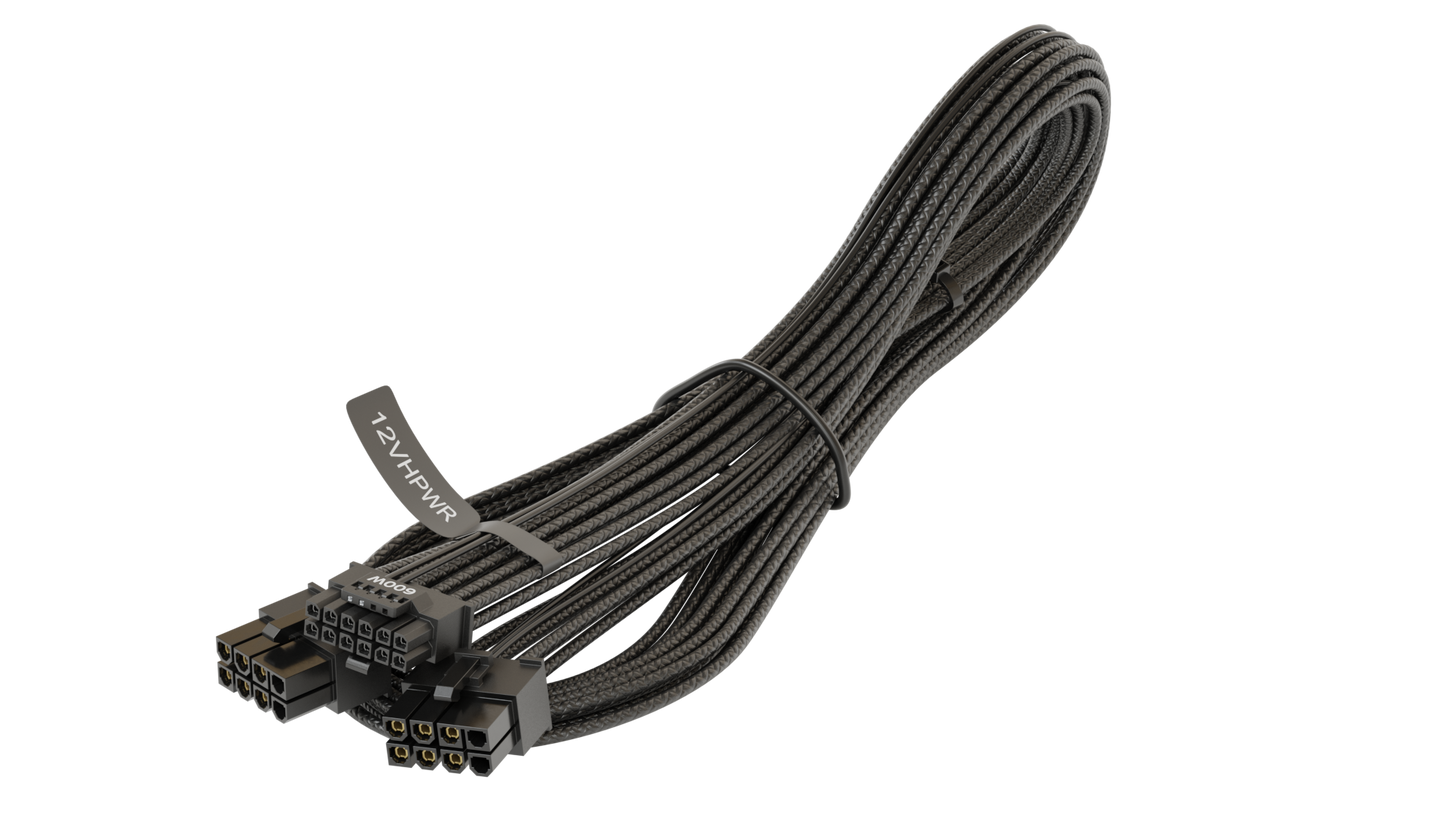

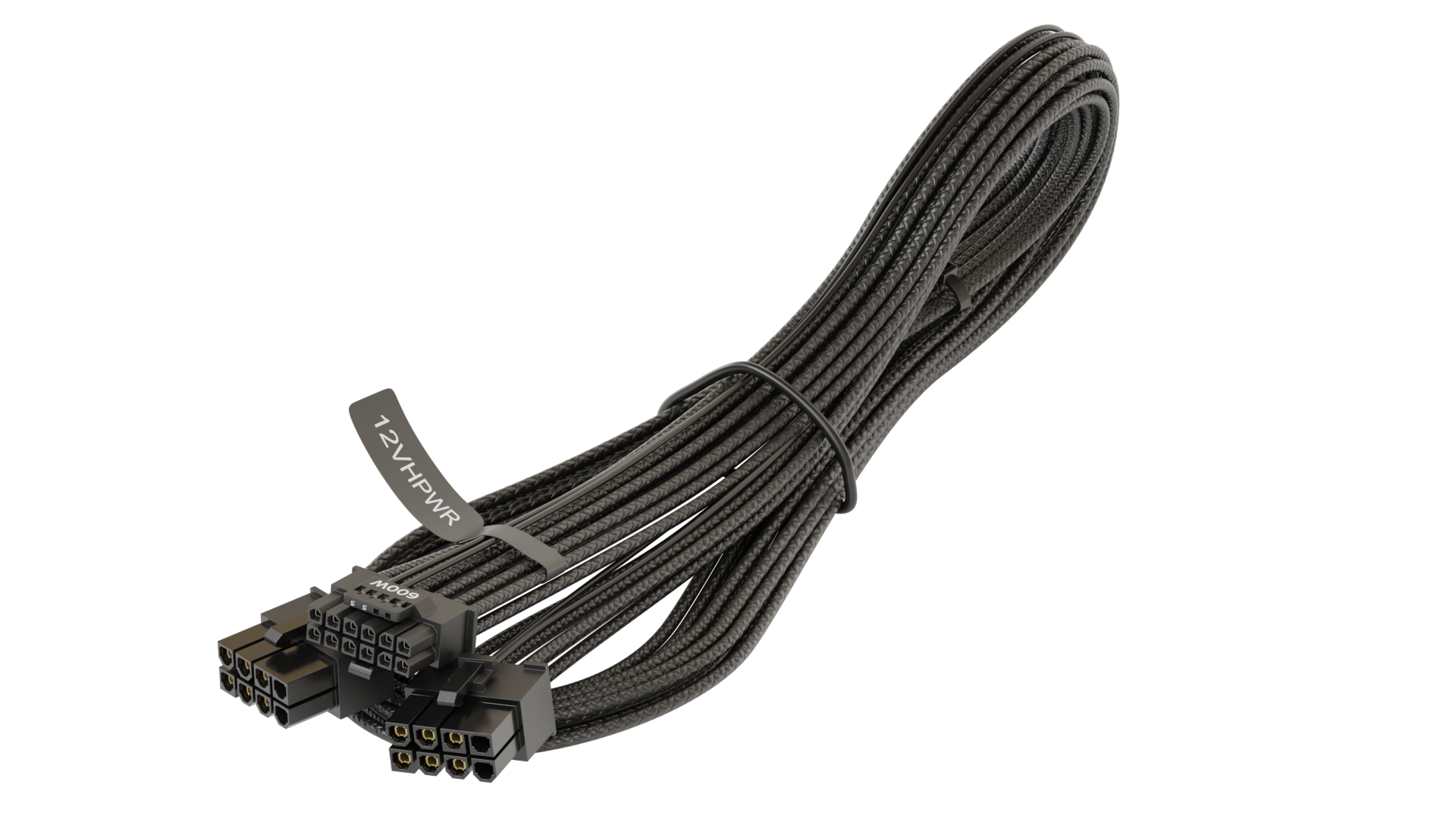

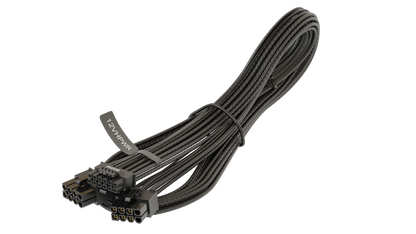

Seasonic 12VHPWR Cable

Please only use with SEASONIC PSU below model, do not use for any other brand and lower model of Seasonic:
Prime GX-1000/1300, PX-1000/1300, TX-1000; Focus GX-1000

A SINGLE CONNECTOR TO POWER THEM ALL
With the arrival of the new ATX 3.0 / PCIe 5.0 specifications, graphic cards will now be powered by the new 12VHPWR connector. Offering up to 600 W of power, this cable has been crafted with high quality materials, such as high current terminal connectors and 16AWG wires to ensure safe usage. The new 12VHPWR cable is compatible with the Seasonic modular ATX 2.xx PRIME and FOCUS Series power supplies above 850 W output.

RECOMMENDED INSTALLATION OF THE 12VHPWR CABLE
- BOTH 8-pin connectors must be plugged in at all times to your power supply.
- All connectors must be correctly INSERTED, CLICK-LOCKED and TIGHT.
- DO NOT bend or apply force to the cable too close to the connector.
- DO NOT bend the cable in any direction once it is plugged into place.

FEATURES

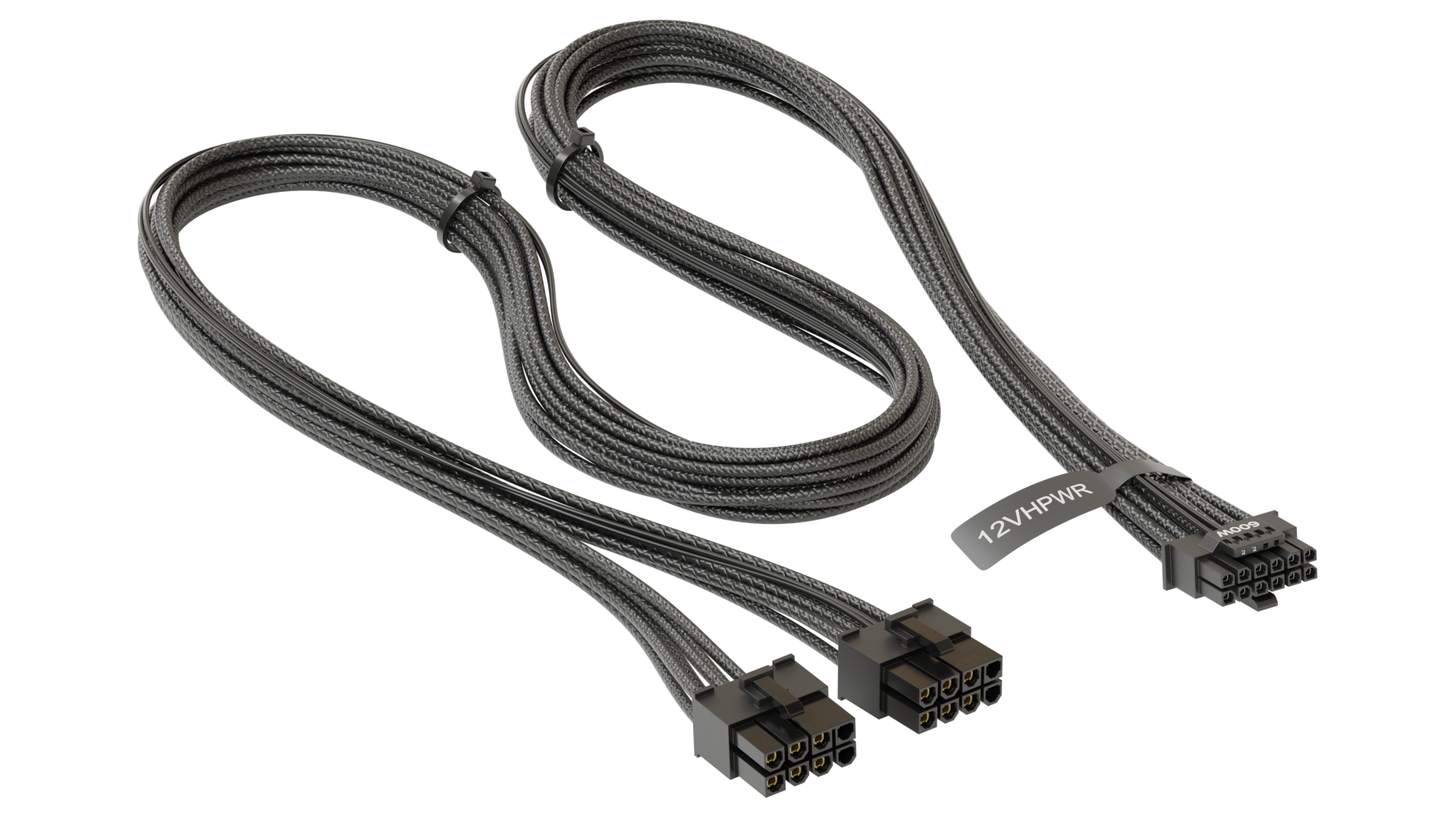

12VHPWR connector (GPU side) to 2 x 8-pin PCIe connectors (PSU side)

Maximum 600 W rated power

16 AWG (American Wire Gauge) size

HCS (Hard Clad Silica) terminals with 94V-0 plastic material for 8-pin housing

Power supply requirement: 850 W and above

Designed for a lifetime of 30 mating cycles, a normal standard for connectors

SPECIFICATIONS

Connectors: 2x 8-pin to 1x 12VHPWR - High Current Terminal connectors

Gauge: 16AWG

Lenght: 750mm
