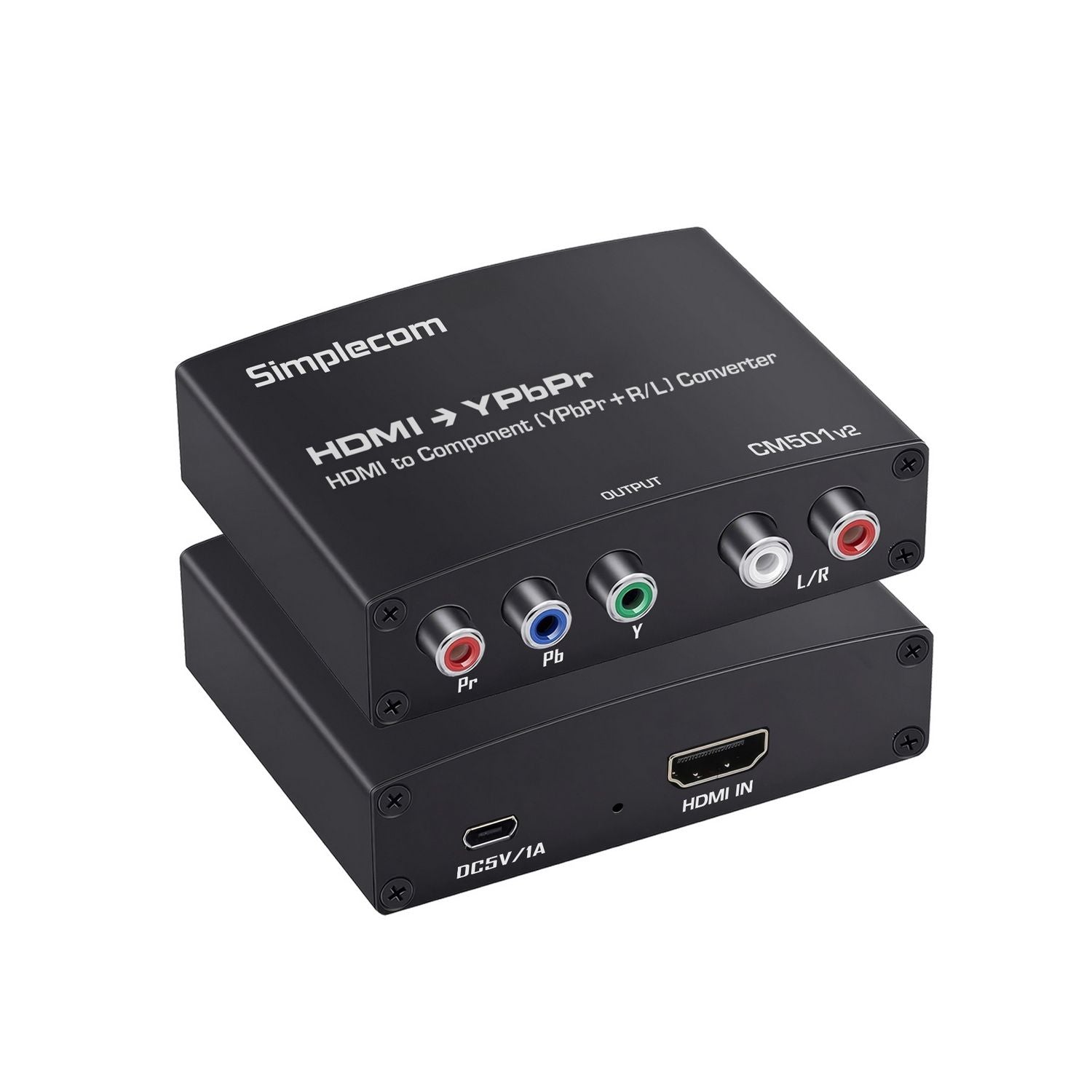

Simplecom CM501v2 HDMI to Component YPbPr Converter – 1080p

Simplecom CM501v2 HDMI to Component Video Converter

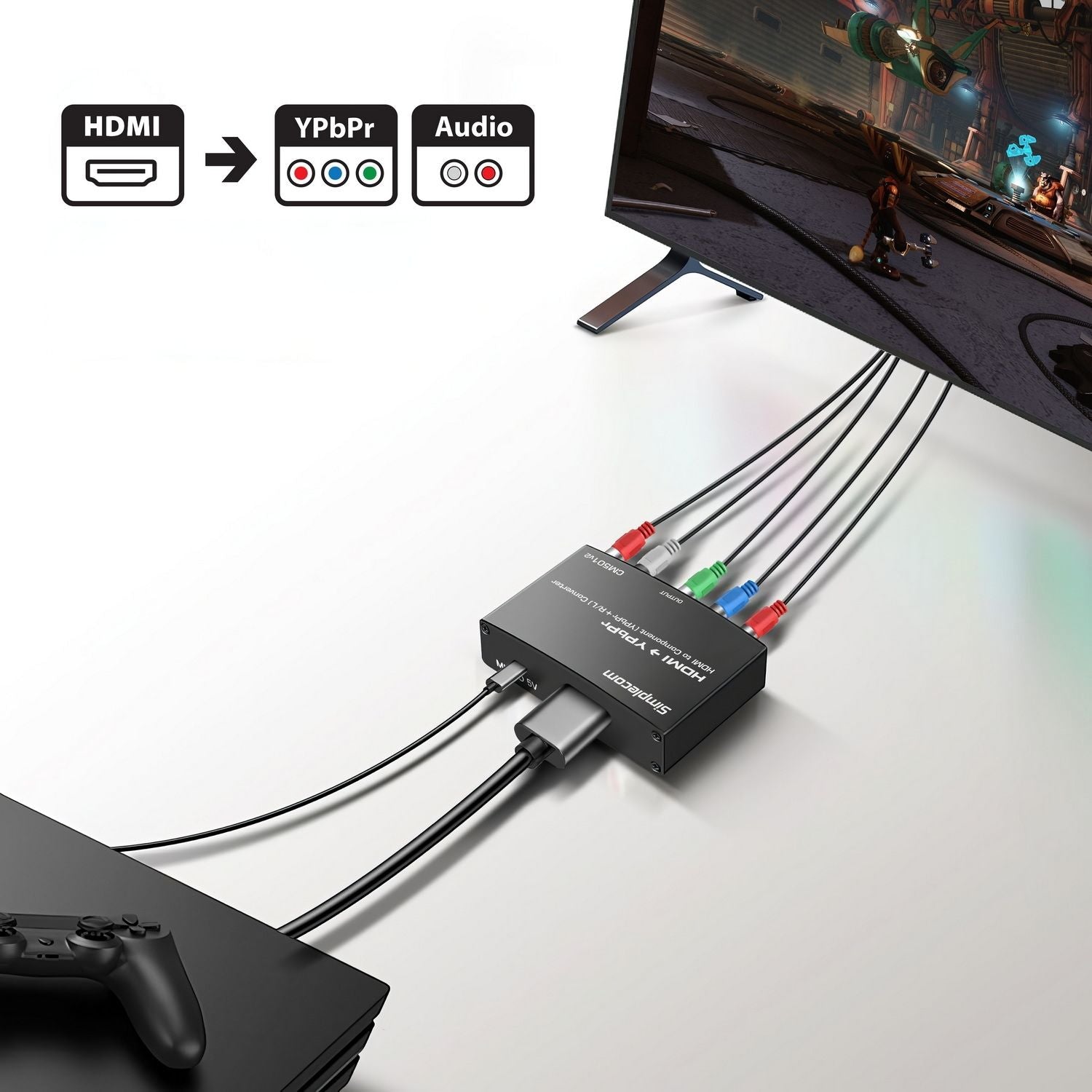

Connect a modern HDMI source to a compatible older component display or projector with the Simplecom CM501v2. It converts digital HDMI input into analogue YPbPr component video and left/right stereo audio, supporting video resolutions up to Full HD 1080p.

Keep using a compatible component-equipped screen in your entertainment setup without replacing it solely for an HDMI input. The compact metal enclosure houses the converter, while USB power allows operation from the included wall charger or a suitable USB port.

Features

• HDMI to YPbPr conversion: Digital HDMI input with analogue component video output.
• Separate stereo audio: Left/right audio output with support for uncompressed two-channel LPCM.
• Up to 1080p: Supports the listed standard-definition and high-definition video formats.
• USB powered: Requires a 5V, 1A USB power supply.
• Metal enclosure: Durable housing designed to assist heat dissipation.
• One-way operation: Converts HDMI to component only; it cannot convert component signals to HDMI.

Specifications

• Brand: Simplecom
• Model: CM501v2
• Input: HDMI v1.4
• Output: Component video (YPbPr) and R/L stereo audio
• HDCP support: HDCP 1.2
• HDMI input bandwidth: 165 MHz / 1.65 Gbps per channel, 4.95 Gbps total
• Supported resolutions: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
• Vertical frequency range: 50/60 Hz
• Operating temperature: 0°C to 70°C
• Operating humidity: 10% to 85% RH
• Storage temperature: −10°C to +80°C
• Storage humidity: 5% to 90% RH
• Case material: Metal
• Power input: USB 5V / 1A
• Maximum power consumption: 5W
• Dimensions: 8.8 × 6.8 × 2.5 cm
• Weight: 68 g

What's Included

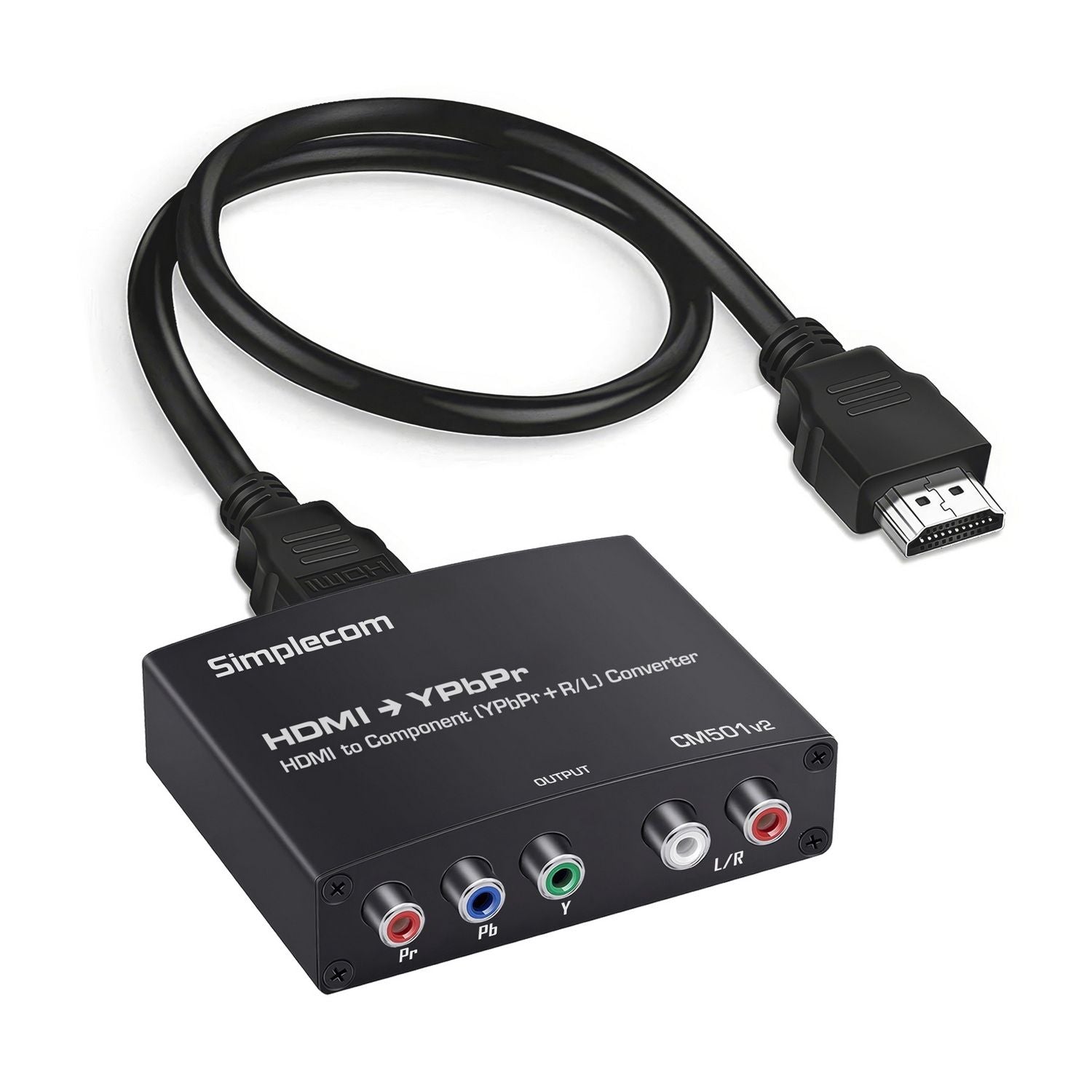

• 1 HDMI to component converter
• 1 HDMI cable, 0.5 m
• 1 USB power cable
• 1 USB wall charger

Check Your Connections Before Ordering

Your source must provide HDMI output and your display must accept YPbPr component video. Component video is not the same as a single yellow composite video connection.

Choose a source resolution supported by your display. Resolution scaling is not specified, so do not assume the converter will automatically adapt an unsupported format. Source, display and protected-content compatibility must also match the listed capabilities. Use two-channel LPCM where required for compatible stereo audio output.

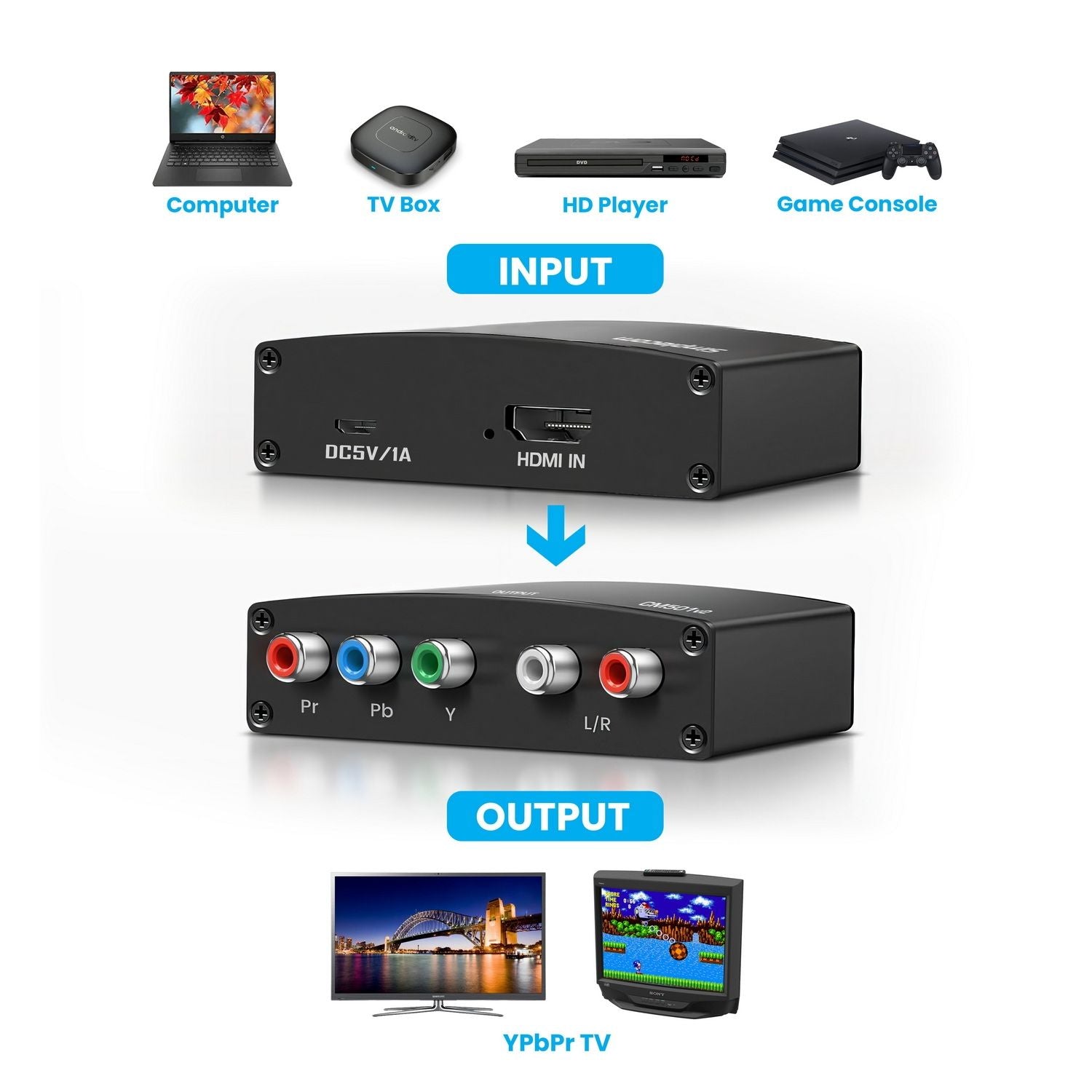

This converter works in one direction only: HDMI source to component display. Component video and stereo audio cables are not listed among the included items.
